JEGS 15389 Fuel Cell with Sending Unit 20 Gallon Polished Aluminum UF_ZL3XC022

$252.00  $66.79




Product details:

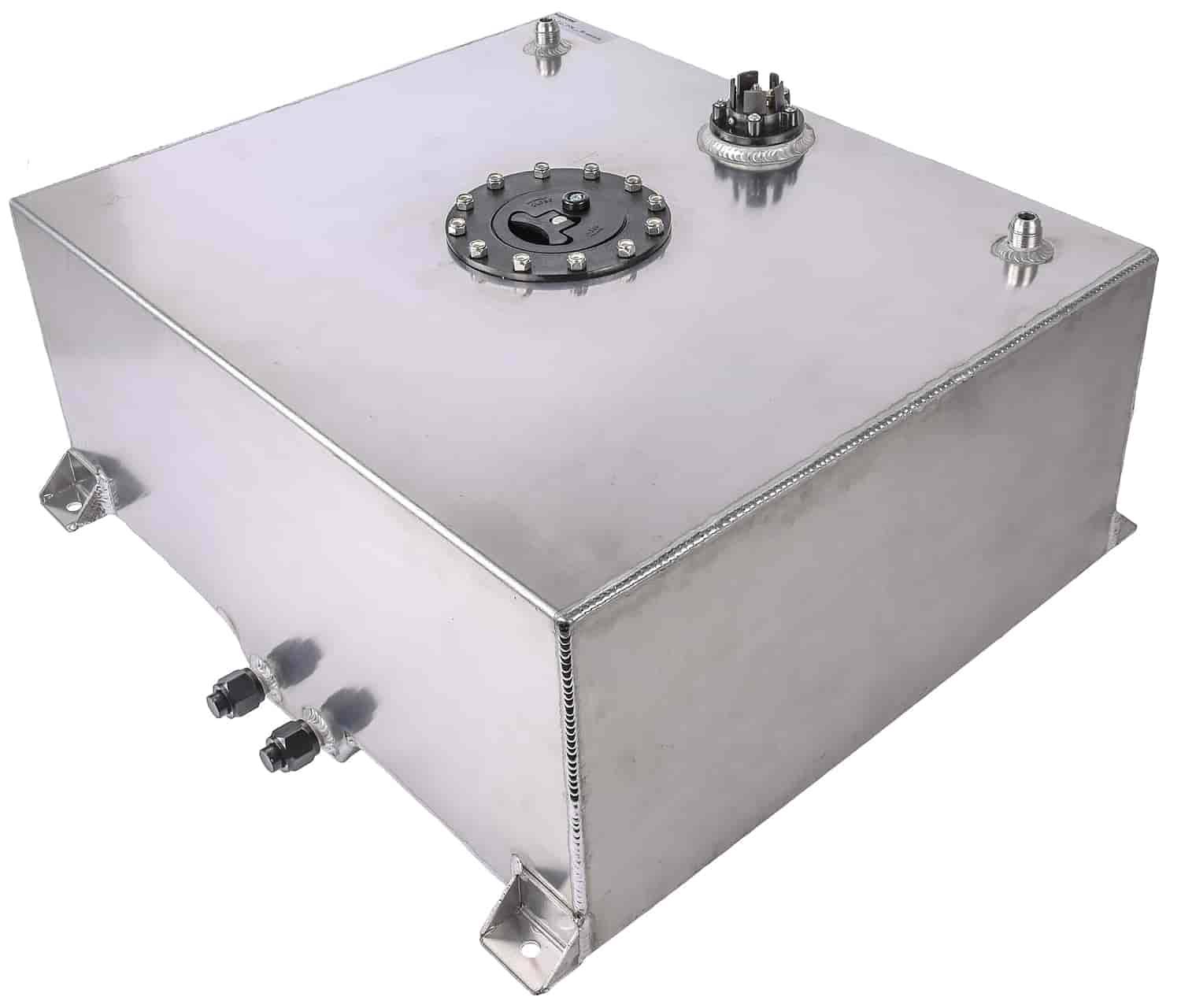

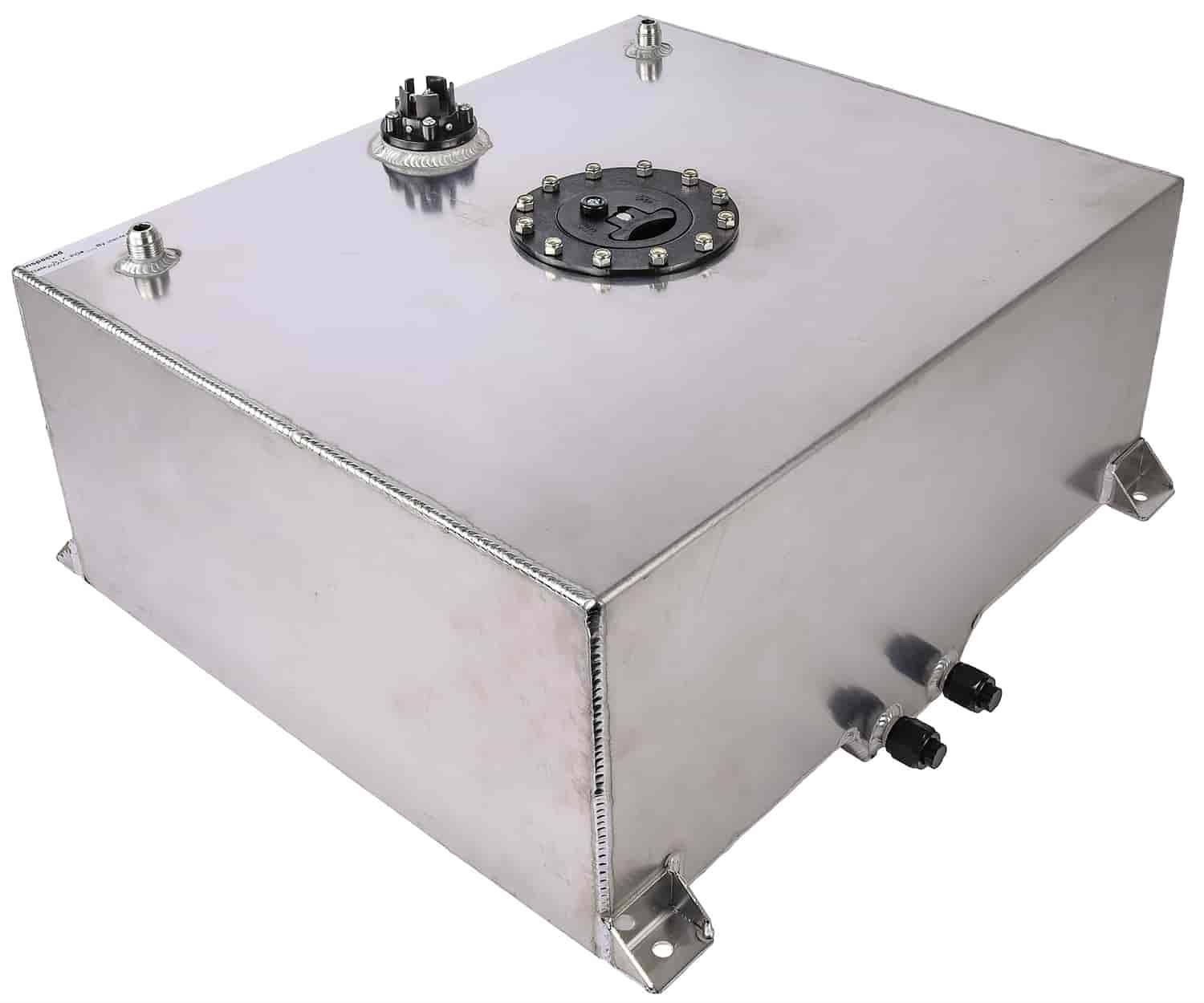

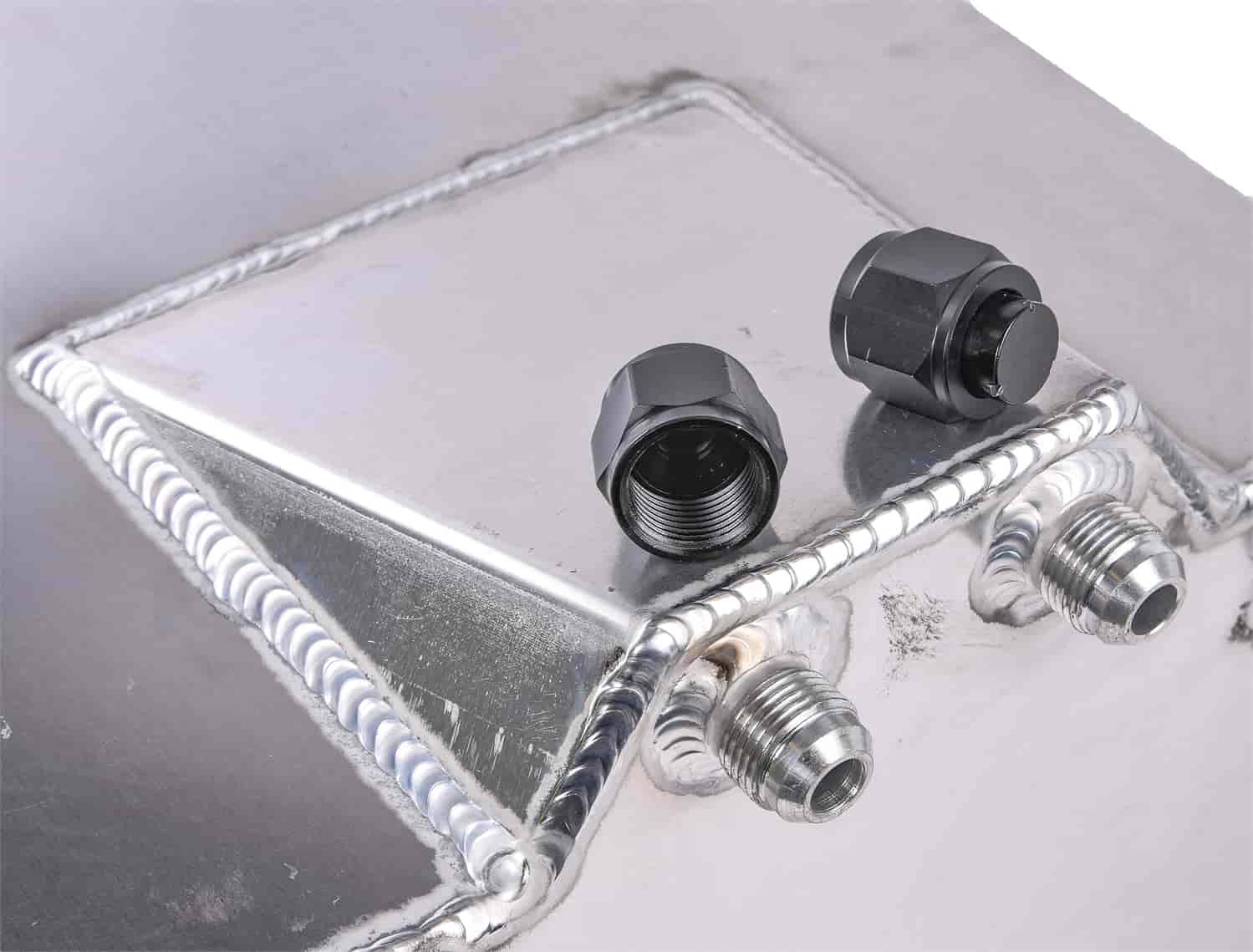

CONSTRUCTED FROM aluminum and then polished for great looks and long life SPECIFICATIONS: 24" long x 20" wide x 10" high, 2" sump depth INCLUDES 0-90 ohm sender, two -10 AN male outlets, one -10 AN male return, and one -10 AN vent fitting FEATURES flush-mount cap MADE WITH high quality materials and assembly Fuel Cell w/ Sending Unit20-Gallon Capacity24 in. H0.090 in. Wall Thickness(2) -10 AN Male Outlets(1) -10 AN Male Return(1) -10 AN Male Vent2 in. Sump DepthFlush-Mount CapPolished Aluminum This fuel cell does not have a roll-over vent valve, either port can be used as a return. The current foam in this cell is only compatible with gasoline-based fuels and must be removed when using Alcohol, Methanol, and E-85 fuels since the water content in alcohol-based fuels may cause the foam to break down. A roll-over vent valve is available for purchase separately.

  • 10 AN male outlets, one
  • 10 AN male return, and one
  • 10 AN Male Outlets(1)
  • 10 AN Male Return(1)
  • 10 AN external mount valve 555-15379
